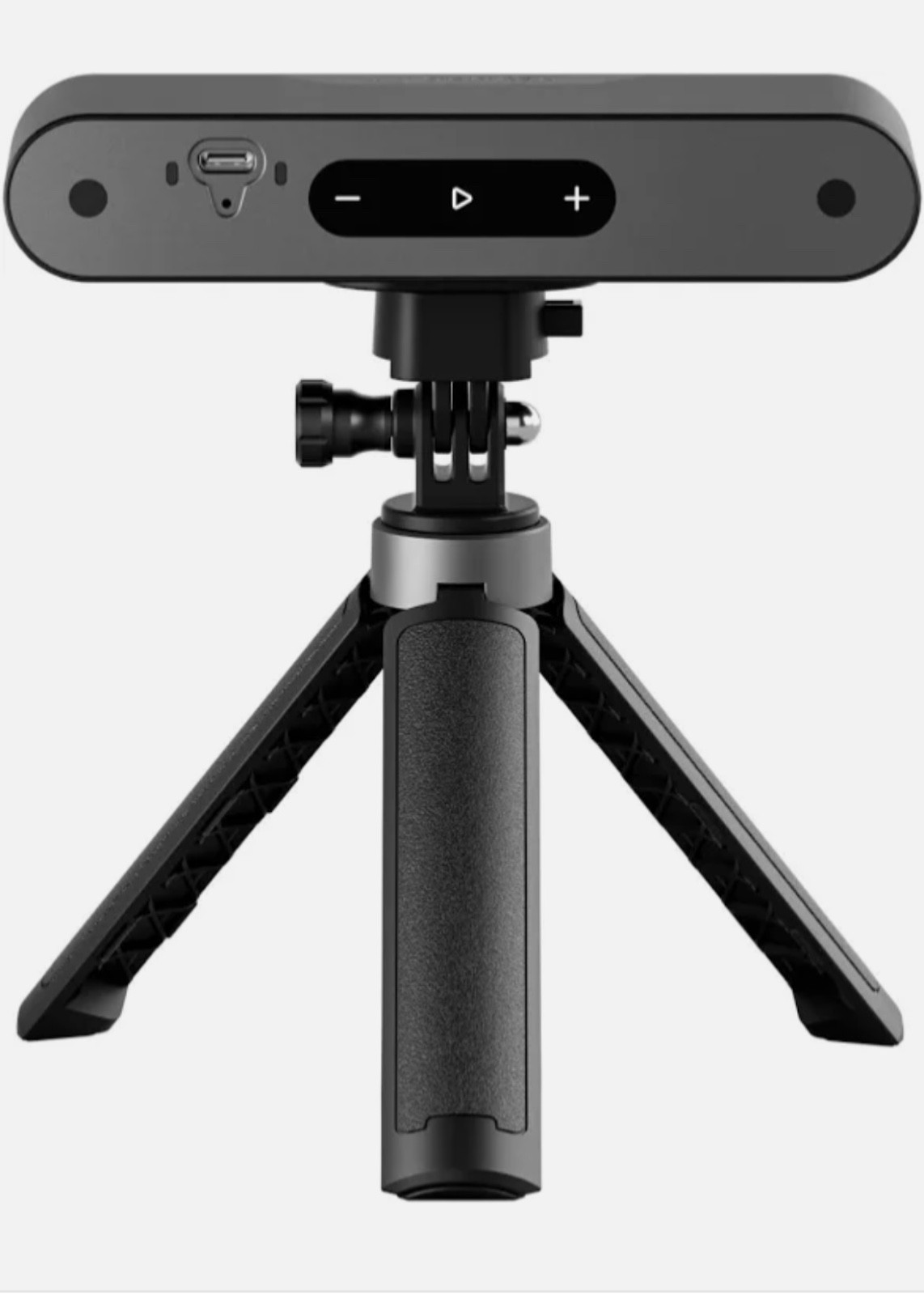

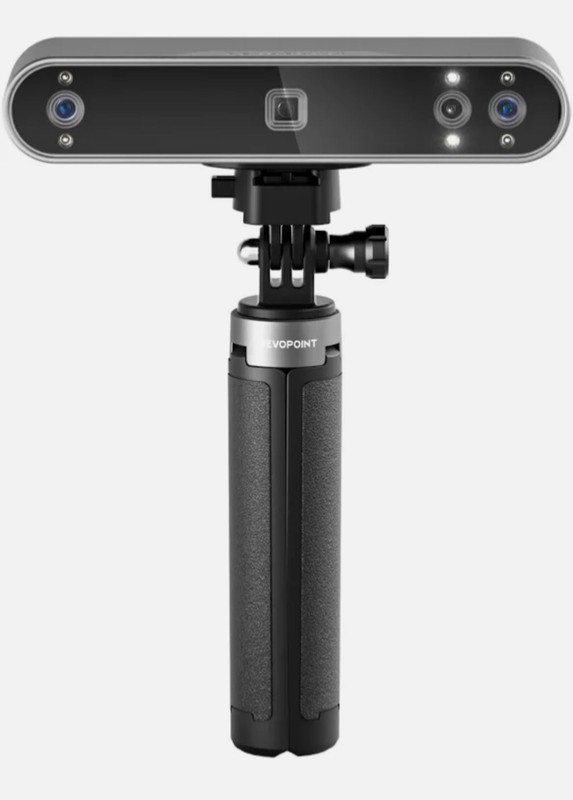

The Revopoint POP 3 3D Scanner is a handheld device designed for 3D printing with a high resolution of 0.05mm and a fast scan speed of up to 18fps. It features a dual-camera Infrared Structured Light technology, a 9-axis IMU position sensor, and a 1 Megapixel RGB camera for color scanning. With a working distance of 150 to 400mm and outdoor scanning capabilities, this scanner is compatible with various operating systems such as Windows, Android, iOS, and macOS. It also offers a variety of export file formats including .asc, .gltf, .fbx, .ply, .3mf, .stl, and .obj, making it versatile for different software and applications. Perfect for medium-sized objects, the Revopoint POP 3 is a reliable tool for capturing detailed 3D models for 3D printing.
| Bluetooth | 4.1 |
| Depth Camera Resolution, Up To | 1 Megapixel |
| Position Sensors | 9-axis IMU |
| CPU | 2 core, 1.6 GHz |
| Item Length | 6.02 in |
| Scannable Object Size | Medium |
| Single Capture Area At Nearest Distance | 61 x 68 mm at 150 mm |
| Single Capture Area At Furthest Distance | 244 x 180 mm at 400 mm |
| Manufacturer Warranty | 2 Years |
| Item Height | 1.14 in |
| Features | Color Scanning |
| Scanning Speed, Up To | 18 fps |
| 3D Light Source | Class 1 Infrared Light |
| Item Width | 1.77 in |
| Scanner Weight | 190 g |
| Single-frame Accuracy, Up To | 0.1 mm |
| Outdoor Scanning | Yes |
| Minimum PC Requirements | Intel Core i5, 8 GB RAM |
| Minimum Scan Volume | 20 x 20 x 20 mm |
| Brand | Revopoint |
| Type | Handheld |
| Power Requirements | DC 5V, 1A |
| RGB Camera Resolution | 1 Megapixel |
| Tracking Methods | Feature, Marker |
| Model | POP 3 |
| Fused Point Distance, Up To | 0.05 mm |
| Single-frame Precision, Up To | 0.05 mm |
| Interface | Wi-Fi, USB Type-C |
| Angular Field Of View (H X W) | 40 x 25° |
Using its color scanning, my scans look true to life, and the colors match the original object well.
