Creality CR-Scan Otter 3D Scanner Reverse Engineering Handheld Scanner K6G7

Creality CR-Scan Otter 3D Scanner Reverse Engineering Handheld Scanner K6G7

USD 849.00 USD
SKU: tpWPFixu
Condition: New

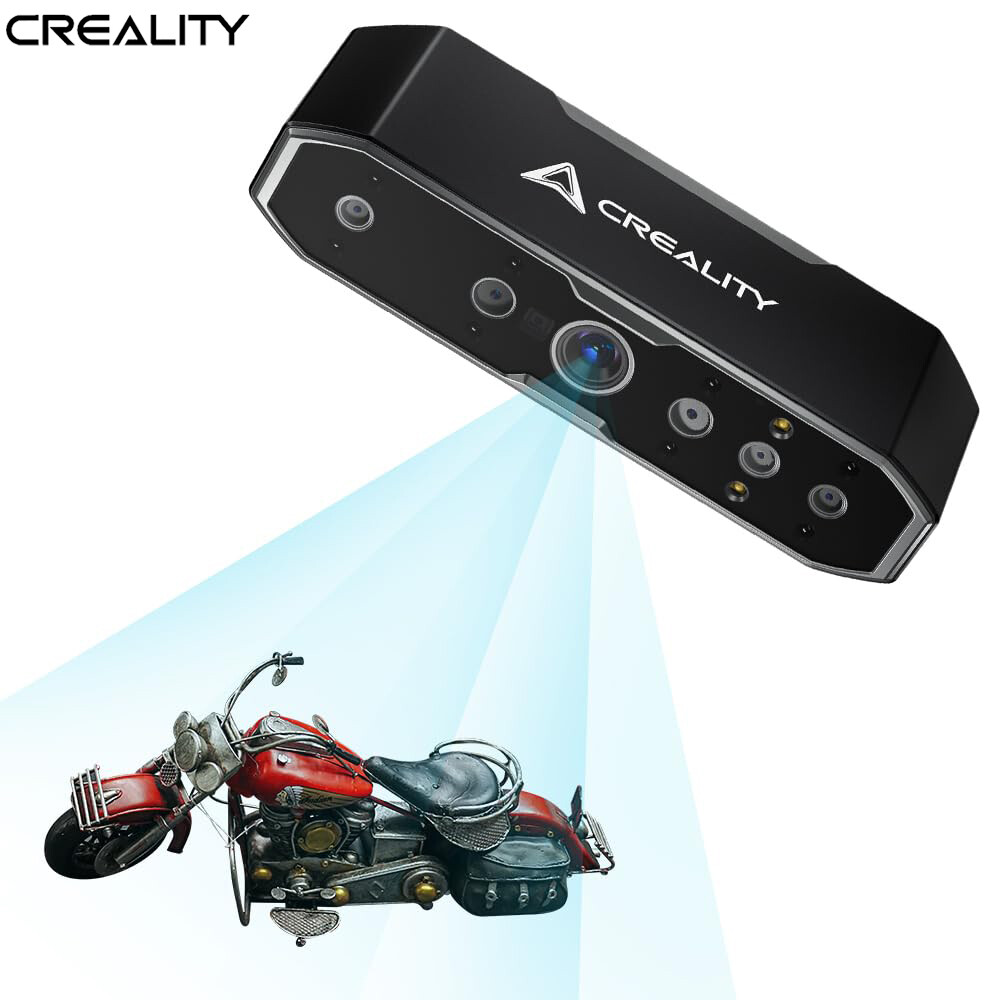

Features: 🔝 High-Accuracy and Fast 3D Scans: The otter 3d scanner delivers industry-leading 0.02mm accuracy and fast scanning speeds of 20fps. With this level of precision, it can capture even the smallest details of an object, allowing you to create highly accurate 3D models quickly and easily. 🔝 One with Everything: Employs Innovative Four-lens Stereo Vision, that excels in handling both large and small things, the CR-Scan Otter realizes possibilities of scanning various objects, ranging in size from 10*10*10mm to 2000*2000*2000mm, from tiny coins to large vehicles, all covered in one scanner. 🔝 Unequalled Scanning Performance: It features a set of long-focal dual lenses for scanning small objects with rich details and a set of short-focal dual lenses for capturing larger objects within a single range of up to 1350 mm x 840 mm@1000mm, ensuring improved tracking and scanning of larger objects. 🔝 Unique Face Algorithm with Eye Safety: Face & body mode is equipped with a unique face mapping algorithm that enables the capture of intricate details, including hair. His mode uses near-infrared light, which is invisible to the human eye, making it safe and comfortable for your eyes. You can scan skin and faces worry-free. 🔝 24-bit Full-color Scanning, True-to-Life Reproduction: Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors. And built-in 2 supplemental LEDs helps the scanner capture details precisely. Even in low-light environments, this allows for the most realistic texture effects. 🔝 Stable Scanning and Easy Operation: Equipped with One-Shot 3D imaging technology, the 3d scanner naturally stabilized and less likely to tracking loss. Fast back tracking speed ensures smoother handheld scanning. Design with ring indicator light, touch button and audible feedback, making scanning seamless, it allows for real-time exposure adjustment and offers comfortable and simple operation. 🔝 User-friendly Software: It supports multiple data format outputs, OBJ, STL, and PLY. This compatibility with a wide range of CAD, 3D modeling, and design software, compatible with both Mac and Windows operating systems. Widely apply in modeling, animation, presentation, printing, and design, expanding the possibilities of your scans. Specification: Model: Otter Accuracy: Up to 0.02mm @ 60mm[1] 3D Resolution: 0.05- 2mm Min. Scan Volume: 10mm x 10mm x 10mm Single Capture Range: Max.1350x840mm@1000mm Technology: Infrared structured light Working Distance: 110mm-1000mm Color Mapping: Yes Alignment Modes: Geometry/Marker/Texture Output Format: OBJ/STL/PLY IMU: YES Color Supplemental Light: 2 white LEDs Marker Recognition Enhancement: 8 infrared LEDs Laser Safety: Class I (eye safe) System Support: Windows/macOS Operating Temperature:-10°C to 40°C Operating Humidity: 0-90% RH Input Power: 5V 3A Data Interface: Type C/USB3.0/USB2.0 Device Dimensions: 165mmx37mmx59mm Device Weight: 390g Packing List: 1 x Otter 3D Scanner Kit

Specifications

Return Shipping Will Be Paid ByBuyer
All Returns AcceptedReturns Accepted
Item Must Be Returned Within30 Days
Refund Will Be Given AsMoney Back
ModelOtter
3D Resolution0.05- 2mm
Min. Scan Volume10mm x 10mm x 10mm
Single Capture RangeMax.1350x840mm@1000mm
Working Distance110mm-1000mm
Color MappingYes
Alignment ModesGeometry/Marker/Texture
Output FormatOBJ/STL/PLY
IMUYES
Color Supplemental Light2 white LEDs
Marker Recognition Enhancement8 infrared LEDs
Laser SafetyClass I (eye safe)
System SupportWindows/macOS
Operating Temperature-10°C to 40°C
Operating Humidity0-90% RH
Input Power5V 3A
Data InterfaceType C/USB3.0/USB2.0
Device Dimensions165mmx37mmx59mm

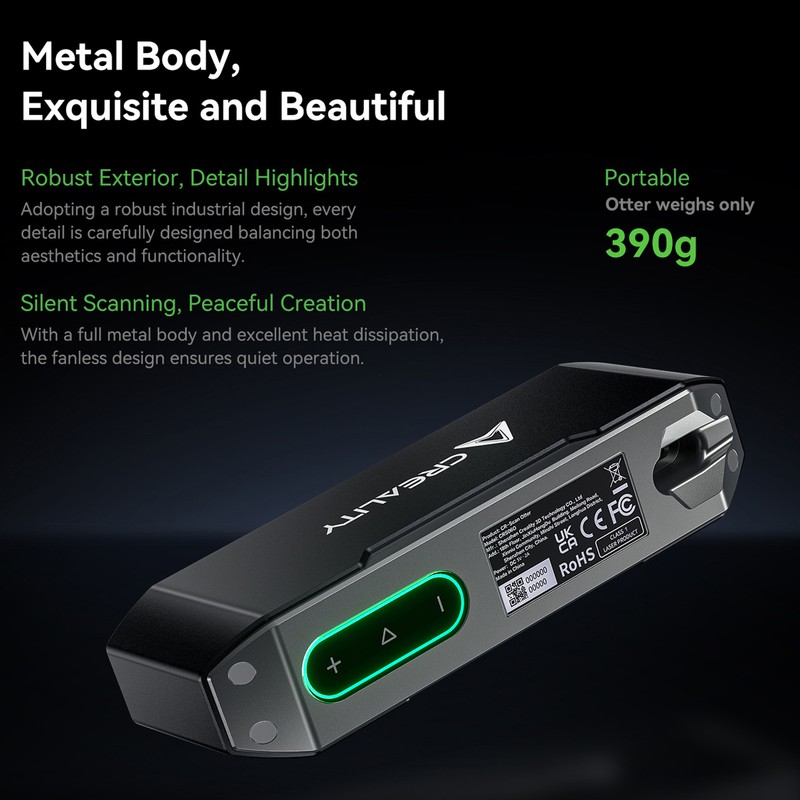

Device Weight390g
BrandCreality 3D
MPNQIG6707427341921UG
ASINB0D4Z3L13V
TypeHandheld
Export File FormatsOBJ
FeaturesColor Scanning
InterfaceType C/USB3.0/USB2.0

You will find that the Creality 3D branding pairs well with simple menus, so starting a scan feels straightforward.
